Modify a passive 4 ins 1 out Combine OR to a 2 OR 3 outs?

Discussion in 'General Electronics Chat' started by Dadaisme, Apr 21, 2017.

  1. Dadaisme

    Thread Starter New Member

    Aug 21, 2016
    2
    0
    Hi!

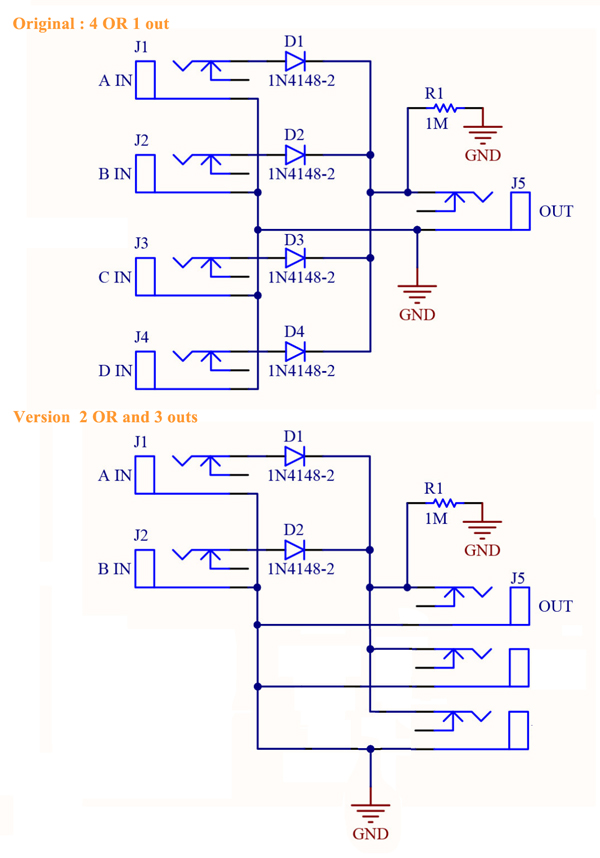

    I want to modify a passive 4 ins 1 out Combine OR to a 2 OR 3 outs.

    Do I need R1? Should the value of R1 differ? Idem for a 3 OR 2 outs.

    It is for a modular synth application.

    Thx!

    [​IMG]

  2. crutschow

    Expert

    Mar 14, 2008
    22,119
    6,411
    If this is supposed to carry audio signals you can't use diodes, since that would rectify the signal.

  3. Dadaisme

    Thread Starter New Member

    Aug 21, 2016
    2
    0
    It's more for combining triggers/clocks (the original is made for modular synth), maybe some lfo for weird things.

    Thx
