Hi All,
I have what appears to be cement power resistors marked zero (0) ohms. They are in the output stage of a subwoofer amplifier that failed before its time (less than 3 years).
The amp failed in the wee hours of the morning some months ago, some hours after I left it powered up after turning off the signal source (our TV receiver).
The way that I could tell was that it sounded like a jet engine was going through field testing upstairs. At least to my sleep muddled ears!

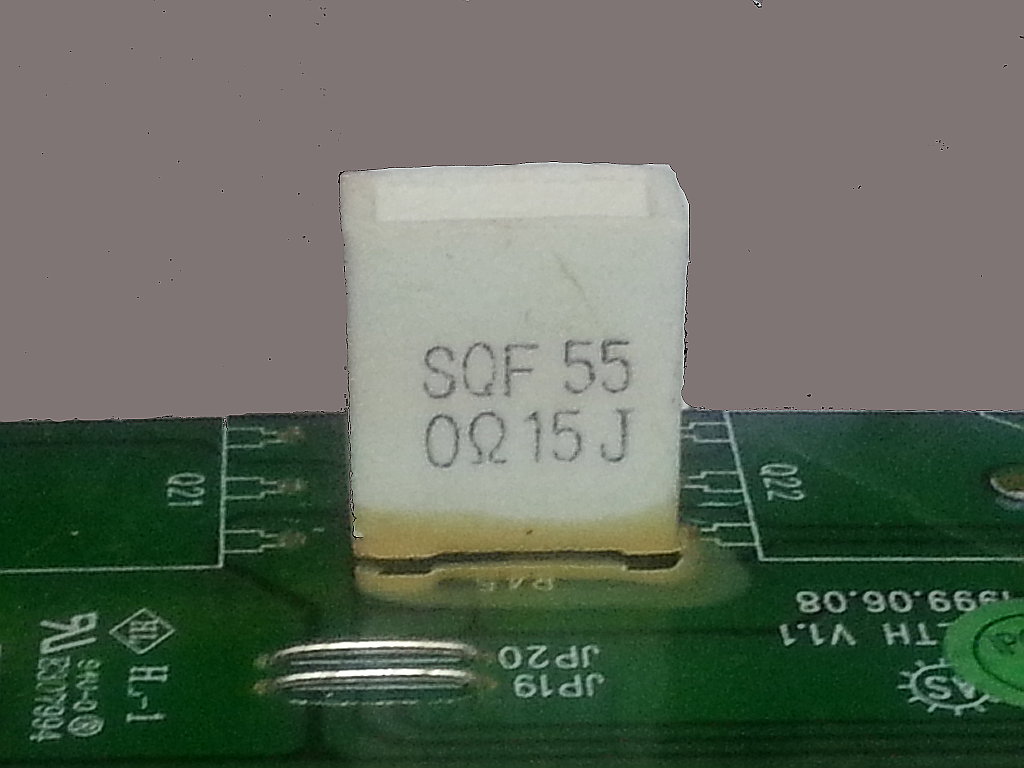

Here's what the components look like:
I apologize for the blanked background. I took this image on my very cluttered workbench, and decided all of the cruft in the background was distracting.
There were two resistors with these markings in this amplifier. Both of them occur between power transistor pairs, as the PCB shows. The transistors are on the bottom side to allow heat sink contact.
I looked up the SQF 55 ceramic resistors online, and found their specifications:
However, this table shows that they have a minimum value of 0.1 Ohms.
My questions:
1) Am I reading the value correctly?
2) Anyone have an idea what purpose these serve in an audio output stage? Short circuit or overload protection perhaps? I looked up zero ohm resistors, and they claim to be used for current measurement and as links.
I'm mainly curious, but I'm working on some projects and am not above scavenging parts... If they turn out to be usable.
Thanks much,
Scott C.
