hi Y15,
The diode should be across the motor winding not C to E of the transistor.
E



hi Y15,
The diode should be across the motor winding not C to E of the transistor.
E

Got it, out of curiosity, how does it differ?



Another nice thing for protoboard building is using SchmartPatch stickers.
https://schmartboard.com/schmartpatch/

https://www.lcd-module.de/deu/disk/development service/datasheet/cat4238.pdf

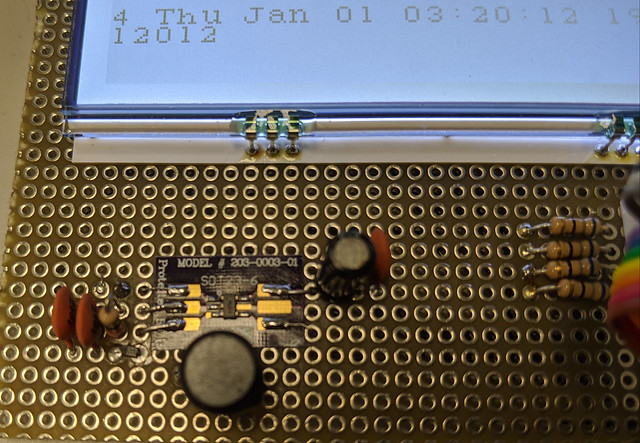

SchmartPatch for SOT23-6 on the back-light driver version of the display board.



Got it, out of curiosity, how does it differ?

The Flyback diode diode shorts the inductive kick from motor winding as it cycles off, it should be as close as possible to the actual source of induced energy.



By the look of your schematic it consists largely of I/O terminations, with the exception of the semiconductor this could be done with just a proper terminal strip.
No real need for any circuit board, not of any significance at least.
Max.



@nsaspook
Ditto on SchmartPatch.

SchmartBoard (https://schmartboard.com/surface-mount-boards/) makes small grooves that helps align those fine pitch devices (e.g. FPGA) that still have visible pins. It even provides a large center hole to hep solder those unreachable center pads on some devices.
