Code based on simulation

Thread Starter

Kuba

Joined Aug 30, 2015
4
Hi!

A am newbie with VHDL code programming for FPGA and I need some help.

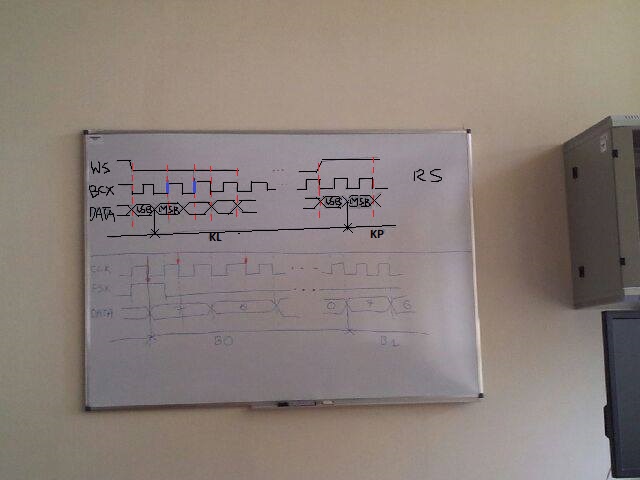

I have simulation described on the blackboard. Here are described two variants:




Is it possible to write a code to FPGA based only on this?

Could you tell me as simple as it possible how to make it?
Co przedstawiają rozrysowane dwa warianty?
What does two variants show? (is it counter, register, ...?)
Czy w każdym wariancie są po 3 czy 4 sygnały? (do czego jest podłączony sygnał DATA?)
Does in each variants there are 3 or 4 signals? (what does DATA signal connected to?)

I work with Nexys™3 Spartan-6 FPGA Board.



Sorry if I wrote it in a wrong place but, it is very important for me.

Thank for reply! :)


RdAdr

Joined May 19, 2013
214
Why did you draw with blue there? It has some meaning?
I see that the Data signal is sensible to negative edges in the BCX signal.

And on how many bits is DATA? And what is with the LSB and MSB there?

That drawing is all the information that you have?


WBahn

Joined Mar 31, 2012
30,087
Which signals are inputs and which are outputs?

What is this bottom line with KL and KP all about?

It looks like your data consists of two words transmitted little endian. It also looks like if your WS (Write Strobe?) is 2N clocks long that you transmit/receive N+1 data words.

As this is Homework Help (and not Homework Done For You) you need to show your best attempt to solve your homework.


WBahn

Joined Mar 31, 2012
30,087
Well, since you apparently expected someone to just work your homework for you with not show of effort on your own behalf, not even so much as to simply answer some basic questions about what your signals are, you didn't have much right to expect much.
