Autotransformer Turn Ratio

Discussion in 'Power Electronics' started by airplane100000, Sep 7, 2016.

  1. airplane100000

    Thread Starter Member

    Aug 2, 2016
    68
    3
    [​IMG]

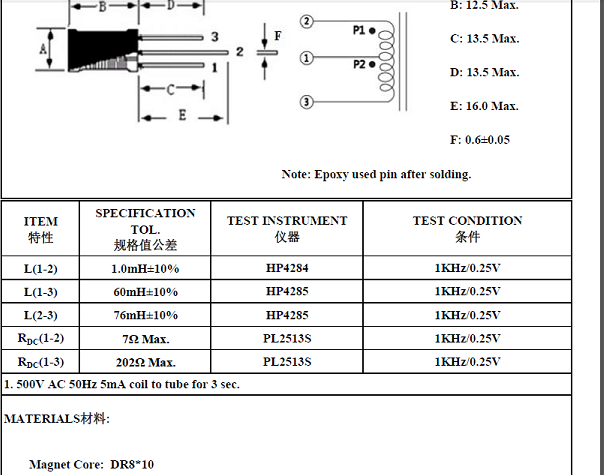

    What is the turn ratio of this component (1-2:2-3)?
    Is it 8.7? - 1/76 = (1/n)^2

  2. AlbertHall

    Distinguished Member

    Jun 4, 2014
    4,220
    959
    That will be a reasonably close approximation. Note that the inductances have a 10% tolerance.

  3. Dodgydave

    AAC Fanatic!

    Jun 22, 2012
    6,476
    1,024
    The resistance ratios are 1:28 roughly....

  4. airplane100000

    Thread Starter Member

    Aug 2, 2016
    68
    3
    Yes...
    So which is it?

  5. AlbertHall

    Distinguished Member

    Jun 4, 2014
    4,220
    959
    I would expect the inductance ratios to be the better estimate. The resistances depend on the wire diameter used whereas the inductance doesn't.

  6. Dodgydave

    AAC Fanatic!

    Jun 22, 2012
    6,476
    1,024
    Well i would input a low voltage ac into pins 2-3 and measure it on 1-2 to see the difference in ratios.

  7. airplane100000

    Thread Starter Member

    Aug 2, 2016
    68
    3
    Thanks...
    You wanna buy it and send it to me?
