PCB Manufacturing Recommendation

Discussion in 'General Electronics Chat' started by bwilliams60, Dec 30, 2018.

  1. bwilliams60

    Thread Starter Senior Member

    Nov 18, 2012
    1,110
    207
    Looking to get about 10 simple power distribution boards made up at a relatively decent price. Does anyone know of a good place in Canada or US that has pretty good turn-around time and quality? Do any of them offer a layout or design program that you can draw this up yourself? Thanks in advance for any help.

  2. MrChips

    Moderator

    Oct 2, 2009
    18,691
    5,936
    You can try oshpark.

    djsfantasi, nsaspook and bwilliams60 like this.
  3. MaxHeadRoom

    Expert

    Jul 18, 2013
    18,203
    5,584
    I have also used Oshpark for just the PCB.
    There is free Kicad for a schematic capture program.
    Max.

    bwilliams60 likes this.
  4. bwilliams60

    Thread Starter Senior Member

    Nov 18, 2012
    1,110
    207
    Thank you MrChips and Max for your help.
    If you were to buy outside the US/Canada, where would you get them from? If China, how long would l be looking at to get them shipped to Canada?

  5. BobTPH

    Senior Member

    Jun 5, 2013
    1,733
    441
    You can get them from China, dirt cheap, in about 2 weeks to the U.S. Oshpark takes about the same time, and is much more expensive.

    If you want to pay a lot more, you can get 1 day service from some U.S. manufacturers.

    Bob

  6. MrChips

    Moderator

    Oct 2, 2009
    18,691
    5,936
    Alberta Printed Circuits has a prototyping service, with no solder mask and no silk screen, next day shipping. You pay a bit more.

  7. MaxHeadRoom

    Expert

    Jul 18, 2013
    18,203
    5,584
    Depends on the carrier, China Post takes 1 month+.
    The usual other option is DSL which is about 2 weeks. But higher $$ of course.
    Max.

  8. nsaspook

    AAC Fanatic!

    Aug 27, 2009
    5,776
    6,507
    I did and really like the results for a simple old board design respin to add a few tricks for a new project.

    [​IMG]

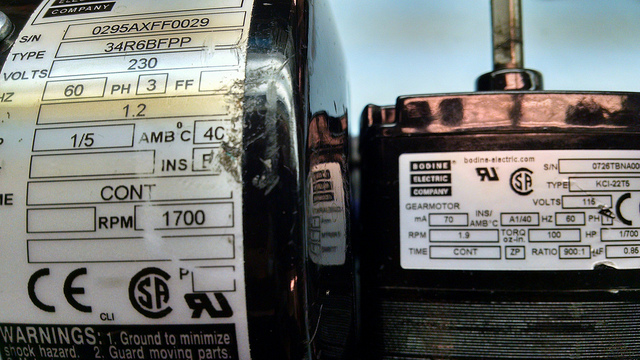

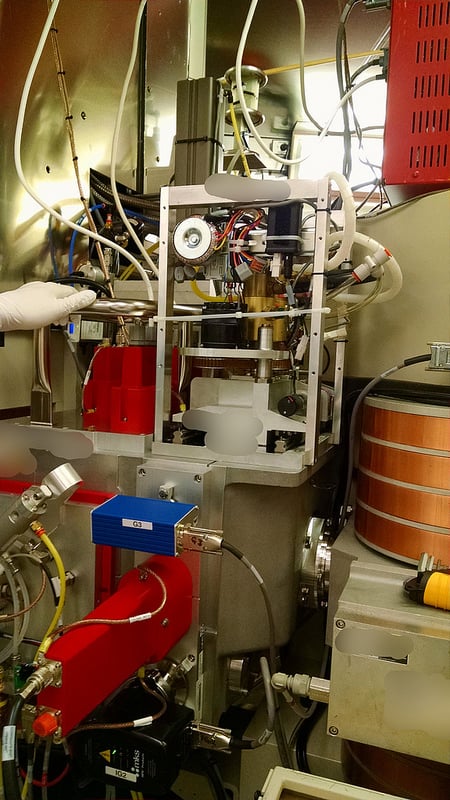

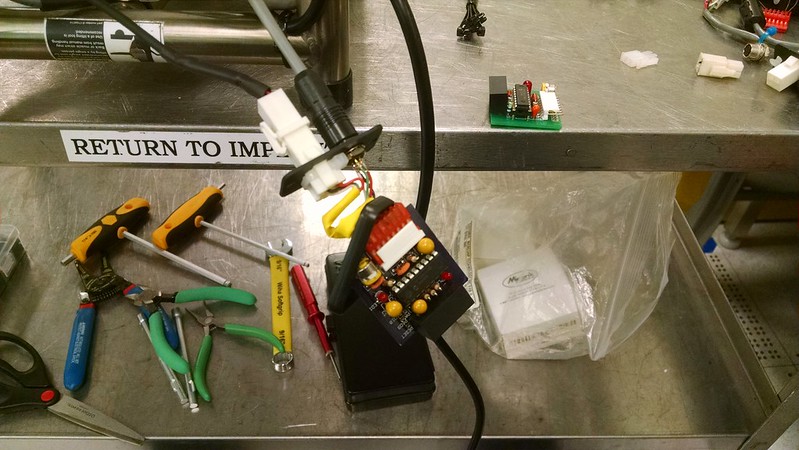

    Replace the old variable reluctance gear sensor with a new Hall zero Hz sensor in a ion beam variable slit.
    [​IMG]

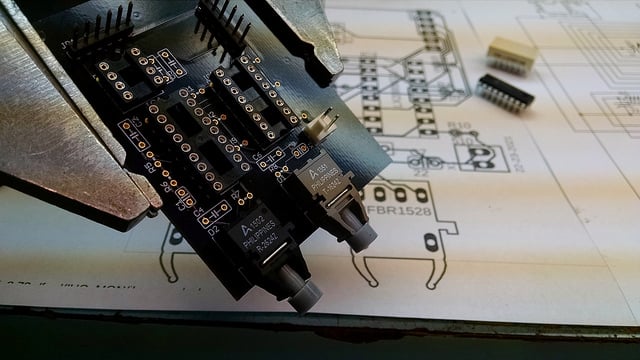

    New rev of the old board green PCB with PIC18F1320 controller. Nice printing, copper and masking.
    [​IMG]

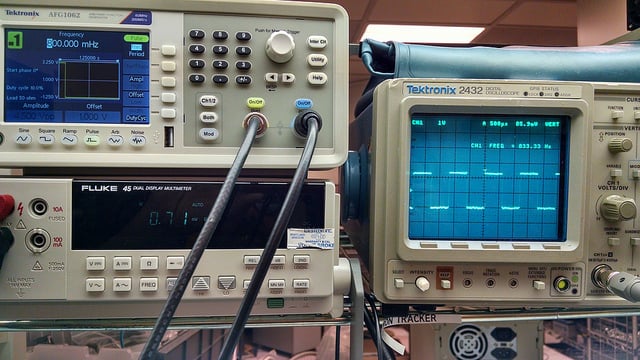

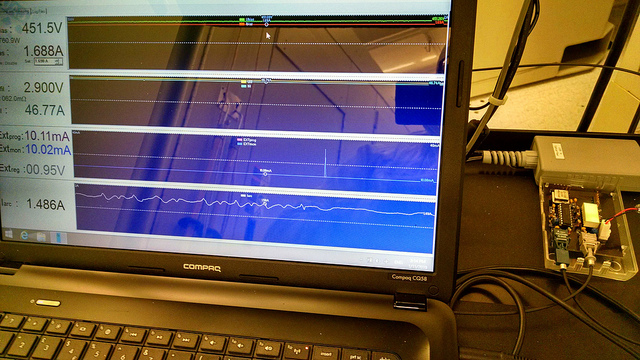

    A low limit of 0.8Hz pulses deliver the original 833Hz gear signal for the machine controller using the new motor @ 1.9 RPM speed
    [​IMG]

    djsfantasi likes this.
  9. nsaspook

    AAC Fanatic!

    Aug 27, 2009
    5,776
    6,507

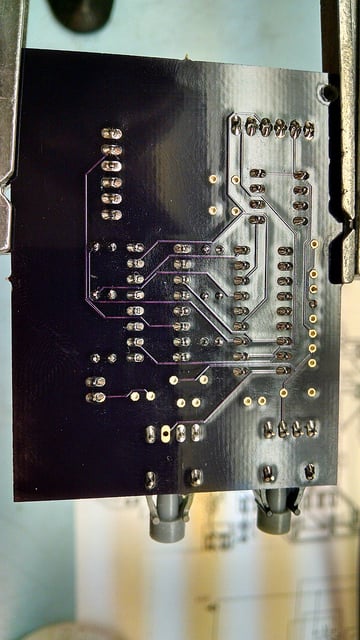

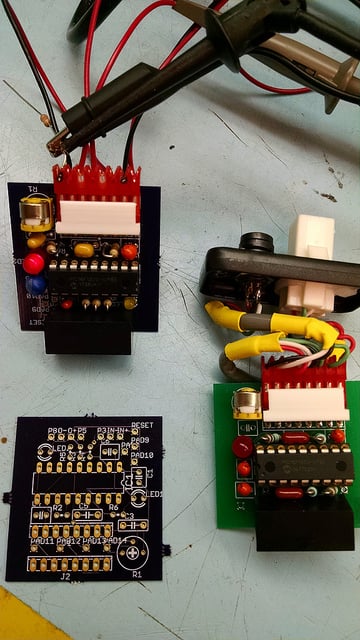

    This is OSH Park board that used the 'free' Linux 64-bit Eagle 9.2.2 manufacturing zip file menu option. I just dropped the result zip file in the web input folder hopper.
    [​IMG]
    [​IMG]
    [​IMG]

    Last edited: Jan 16, 2019
  10. nsaspook

    AAC Fanatic!

    Aug 27, 2009
    5,776
    6,507

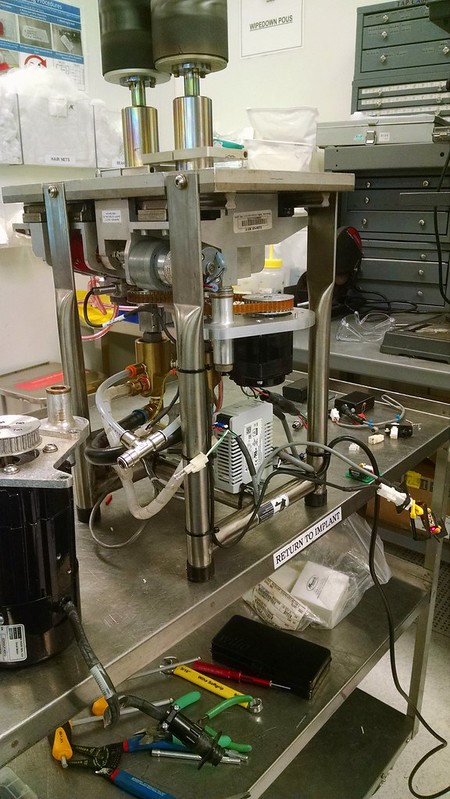

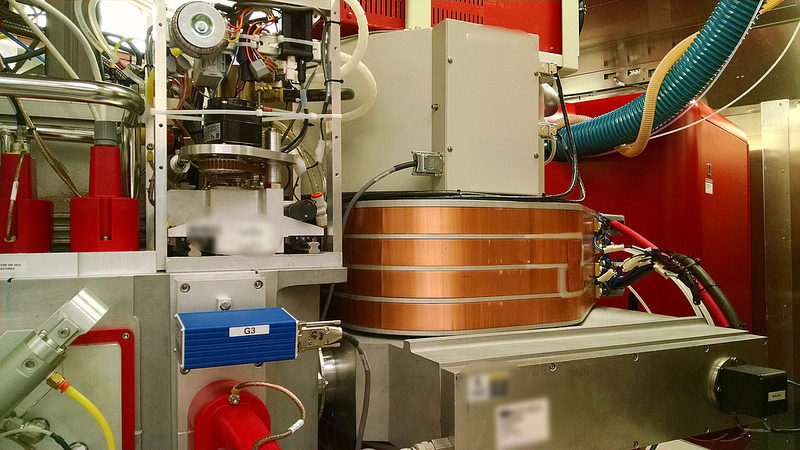

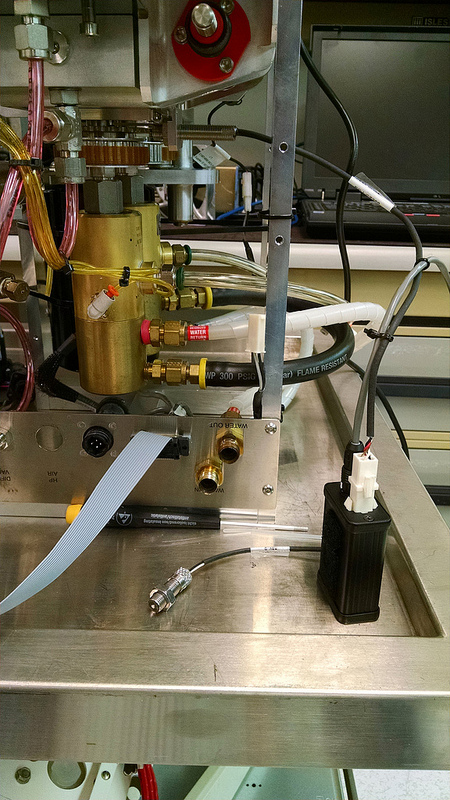

    PCB motor modules installed in machine.
    [​IMG]
    [​IMG]
