Ltspice simulation

Discussion in 'Homework Help' started by tim510, Jun 10, 2012.

  1. tim510

    Thread Starter New Member

    Jan 11, 2012
    16
    0
    Hi all,

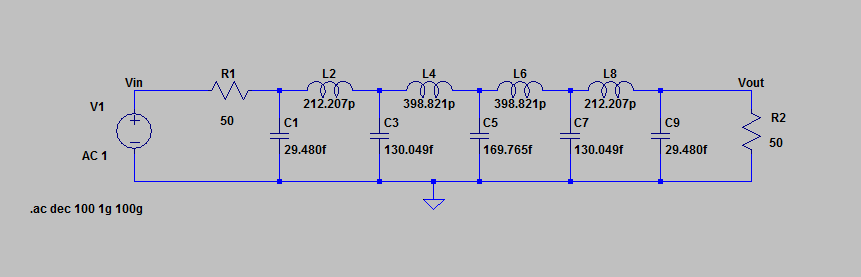

    I have this low-pass circuit:
    [​IMG]

    This is my plot for Vout
    [​IMG]

    Not sure what the dashed line is. :confused: Can someone please point me in the right direction. Thanks.

  2. StayatHomeElectronics

    Distinguished Member

    Sep 25, 2008
    965
    56
    It is the phase of your output signal. Your input signal has a phase of zero degrees. Look at the right side of the graph. The axis is labeled with degrees. The circuit causes a phase shift from input to output and the number of degrees is shown the the dashed line.

  3. tim510

    Thread Starter New Member

    Jan 11, 2012
    16
    0
    Thank you for the clarification. :)
