What is the following circuit role

Discussion in 'Homework Help' started by gbox, Jun 9, 2016.

  1. gbox

    Thread Starter Member

    Dec 29, 2015
    42
    0
    I have got the following circuit:

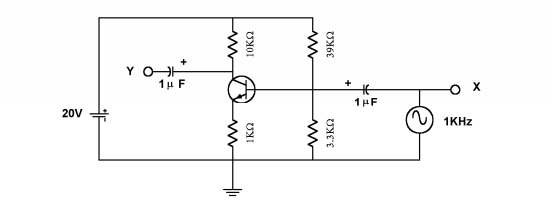

    [​IMG]

    I can not figure out what is it supposed to do

  2. dl324

    Distinguished Member

    Mar 30, 2015
    3,242
    619
    What part of the circuit do you understand (or not understand)?

  3. gbox

    Thread Starter Member

    Dec 29, 2015
    42
    0
    I am trying to build a formulate YX as function of V_in (AC)

  4. dl324

    Distinguished Member

    Mar 30, 2015
    3,242
    619
    This is homework. Show your best effort and someone will try to guide you.

  5. WBahn

    Moderator

    Mar 31, 2012
    17,743
    4,795
    Why do you want the product of Y and X as a function of V_in?

    It's looks to me like V_in IS the signal X.

    Do you know about small signal models?

  6. DickCappels

    Moderator

    Aug 21, 2008
    2,653
    632
    (Hint: In this circuit the signal flows from right to left and the base of the transistor connects to both the 39k and the 3.3 k resistors. It is very poorly drawn )

  7. shteii01

    AAC Fanatic!

    Feb 19, 2010
    3,387
    497
    connect?

  8. DickCappels

    Moderator

    Aug 21, 2008
    2,653
    632
    Corrected. My eyesight is not that good and sometimes I get my fingertips misaligned on the keyboard.

  9. bertus

    Administrator

    Apr 5, 2008
    15,648
    2,346
    Hello,

    I have flipped the picture and added the connection dots.


    Bertus
