I think that you didn't really think out how are you going to place components on the stripboard so you got yourself confused and made a lot of jumper connections so its confusing right now.Do it something like this.
View attachment 75961

is it this one?

I'll have to redraw it in VeeCAD, your's doesn't show breaks (no problem)



I'm going to make a new one in 1h or so,wait till I post a new one.



OK thx ISB123 (sincerely) your the master!



Did you buy a potentiometer?We can put it in place of Series resistors to get adjustable voltage.



Did you buy a potentiometer?We can put it in place of Series resistors to get adjustable voltage.

I bought 2x1k trimmers (small) (http://www.fort777.co.za/index.php?main_page=product_info&cPath=269_456_552_582_588&products_id=5148) and 5x 4k7 lin Pot (http://www.fort777.co.za/index.php?main_page=product_info&cPath=269_456_552_582_585&products_id=3064)

We can put it in place of Series resistors to get adjustable voltage.

That'll be cool!
THEN previously I bought 47k trimmer, 4k7 trimmer and 100k trimmer

I always think of my wall, Friday past I bought another 32 drawers, and when one project needs something, (played a bit with RaspberryPi, but that's too easy!) I always buy for my wall, on hand when and if the new projects ALSO needs it. (this time I kept in mind all the previous projects on this forum, I might need to build one)

AND on one of the RPi breadboards I have a 10K trimmer (I THINK)



Ok,we can use 47K trimmer.
Im going to post board without potentiometer first and then ill just edit the post with trimmer one.


One of the terminals of the trimmer will have to be shorted to form a rheostat .



can this be used as a mask? to know EXACTLY where to place a component, cause my veroboard doesn't have A,B,C,D,E guides

I think I'll build the variable one, will the one end stay 1K, cause I have a couple 0.5W values in my wall and we have to take into account that the trimmer can only handle 0.1W

the 4k7 lin pot can handle 0.125W

Friday I may be able to acquire
20-Turn Cermet Trimmer 50k (CPP503)
Power rating 0.75W

Loudspeaker controls have more Watts, but they're too expensive!



Try with small trimmer,there is only small current flowing through the trimmer and resistor.I only said to take 1W resistor because in case regulator gets hot they will take more heat without increasing the resistance.You can measure the current using the multimeter.Don't use audio potentiometers they are not linear.With 4.7K pot you wont be able to go above ~7V.



Oh and how is that diagonal wire going to be implemented, unless I'm missing something big, I have no clue. Suppose I should just have to print out and see if it makes an accurate mask...

NEW POST
Do I just bend the wire around the trimmer?

NEW POST
oh and the diagonal wire doesn't connect to anything!?



Just solder the two pins together,middle pin and one going towards R1 strip.



oh, I SEE, ok cool

NEW POST
can your CAD generate masks? pdf preferably? ELSE I'll gladly just copy your design onto VeeCAD, and post a mask to the forum.

R1 stays 1K? its the only 2W resistor value I have, but have many 0.5W and MANY (69) 0.25W



THE circuit diagram: (just to be thorough)



Everything seems fine,use R1 2W.My CAD doesn't have mask export that works properly.



Everything seems fine,use R1 2W.My CAD doesn't have mask export that works properly.

It's fine, I'll just port your design to my CAD (VeeCAD) and generate a mask for the forum!



You missed one! 1 down 19 across, break that would have shorted Vout+ with Vin+, now crucify me if you must, but I, well, just spaced out some of the jumpers, I don't want jumpers under my components even if it will fit, AND I can't do diagonal jumpers.

and R1 really is that big

In the colours png. Is my diode path correctly drawn?



Everything looks good so it should work this time.Yes diode looks correct if square represents cathode.



the ring on the diode is square/positive

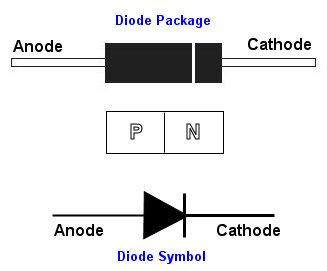

It needs to be other way around.Ring is always on cathode side so ring should be connected to Vo and anode to gnd.



well then that's my error in previous design, no wait!

square Positive. I had my ring at the square, then ring is connected to Vo, and other side ground

then the error is in the schematic and not in the actual implementation

Auto route on VeeCAD want's square (positive) at Vo and negative at GND, then it makes no changes to the layout, if I switch it around it freaks out

but looking at the schematic, it seems that it should be ring at the square and anode at GND

I think, with VeeCAD, the square is the stripe not the positive, else why bomb out with "Auto Route" if I change the polarity around, as is: "Auto Route" makes no changes to the board. But "Auto Route" doesn't always work.

Why do we need the resistors? OK for variable output, yeah, but this circuit is the same as your's except the 330uF is 1000uF and no resistors? It claims 5V power delivery? 3A

http://www.eleccircuit.com/wp-content/uploads/2007/12/lm2576_5v_3a_switching_supply.jpg

PS, I'd rather build a variable system

OK, we are using LM2576-ADJ, so we need the resistors, thats fine, cool



The netlist (Protel)
