Symbol on chip I dont understand

Discussion in 'General Electronics Chat' started by qzart, Jan 16, 2015.

  1. qzart

    Thread Starter New Member

    Jan 16, 2015
    10
    0
    I have a chip that I dont understand its purpose and was wondering if anyone could help

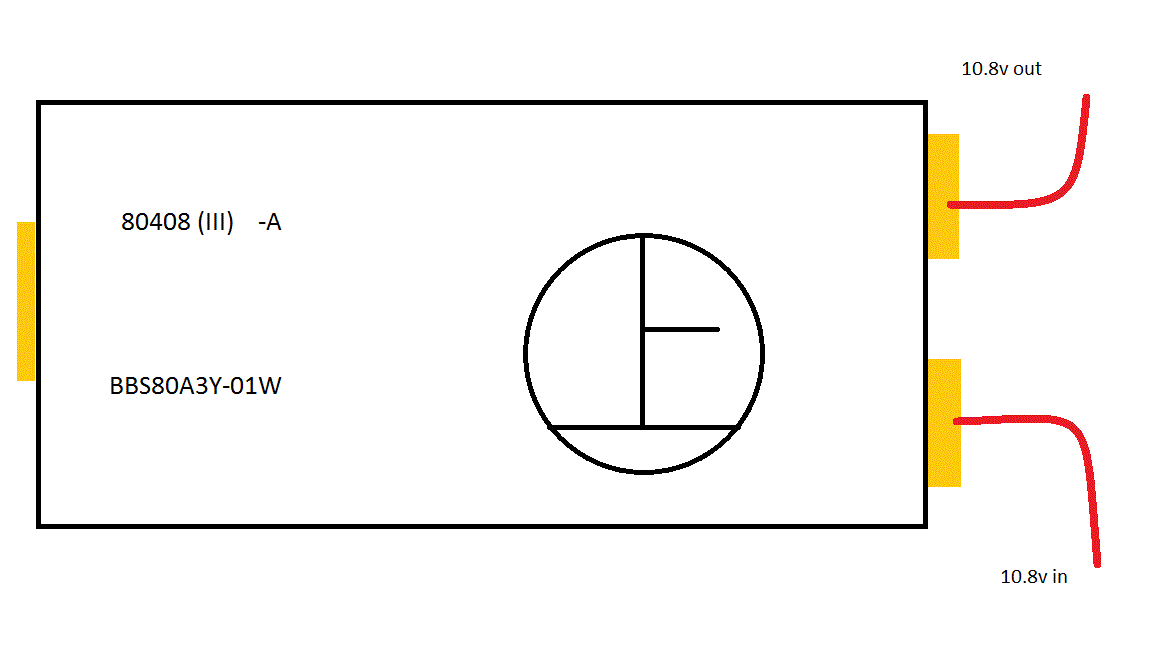

    I created a diagram of the Chip
    [​IMG]

  2. qzart

    Thread Starter New Member

    Jan 16, 2015
    10
    0
    Is it a capacitor, a resistor, or what

  3. kubeek

    AAC Fanatic!

    Sep 20, 2005
    4,669
    804
    could you post a photo?

  4. Kermit2

    AAC Fanatic!

    Feb 5, 2010
    3,765
    925
    3 cell lithium ion battery pack (3 x 3.6) 10.8

    ???

  5. qzart

    Thread Starter New Member

    Jan 16, 2015
    10
    0
    yes a 3 cell lithium pack

  6. qzart

    Thread Starter New Member

    Jan 16, 2015
    10
    0
    No I cant get a good photo the thing is tiny about 4mm by 8mm
    that is why I made the drawing

  7. qzart

    Thread Starter New Member

    Jan 16, 2015
    10
    0
    [​IMG]
    blurry but guess it works

    Last edited: Jan 16, 2015
  8. wayneh

    Expert

    Sep 9, 2010
    12,086
    3,024
    Are the yellow things conductive tabs? Is the lefthand one not connected to anything? Where is the 10.8V coming from?

    (seeing the picture) Huh? Do you mean 4cm x 8cm ?

  9. qzart

    Thread Starter New Member

    Jan 16, 2015
    10
    0

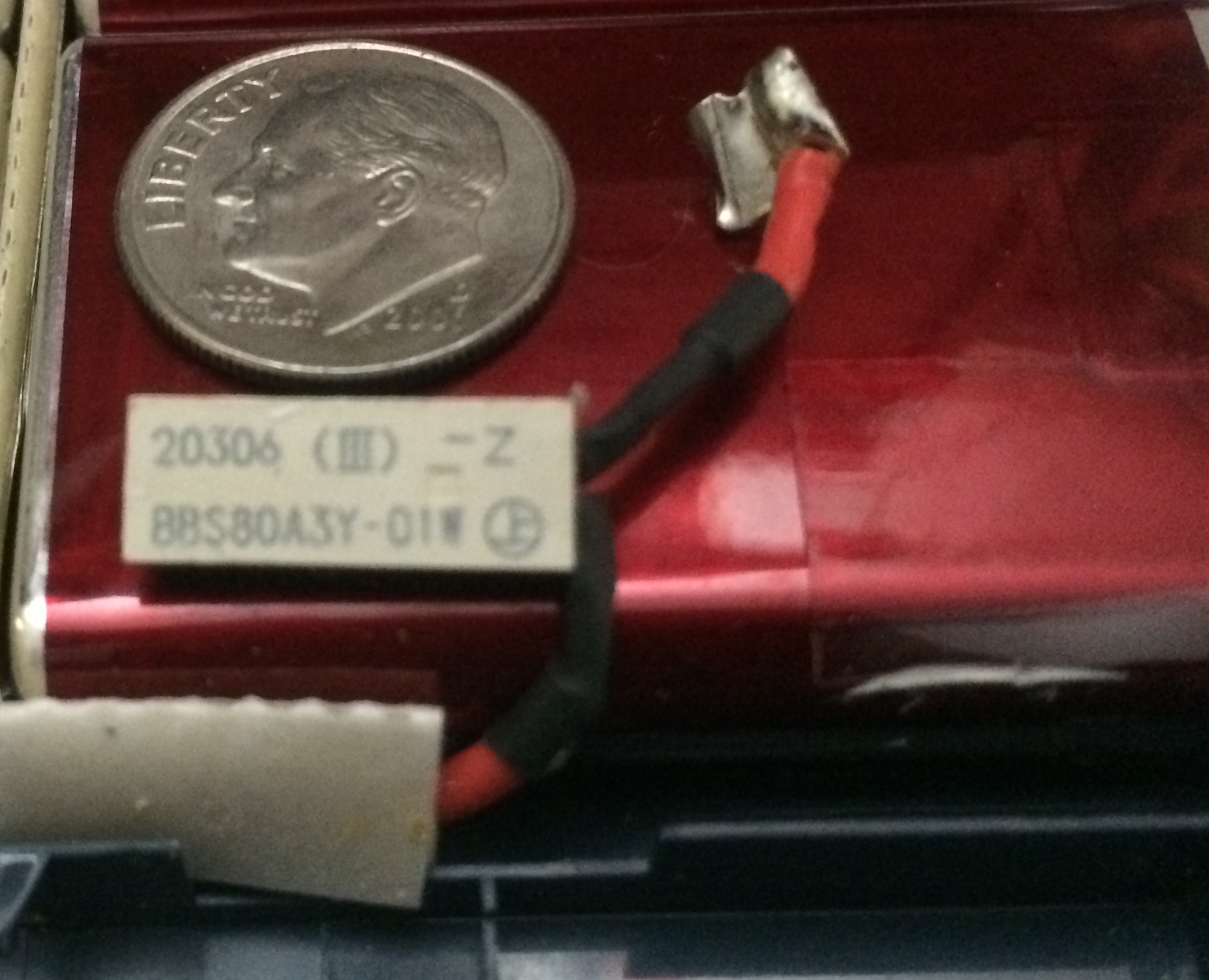

    that picture is supposed to have a dime on it for referance
    [​IMG]

    at any rate what is that symbol
    Circle with lines in it lower right

  10. qzart

    Thread Starter New Member

    Jan 16, 2015
    10
    0
    the yellow things are actually white and insulate conductive tabs

  11. wayneh

    Expert

    Sep 9, 2010
    12,086
    3,024
    Looks like a battery pack to me. The symbol may be a corporate logo; I don't recognize it.

  12. kubeek

    AAC Fanatic!

    Sep 20, 2005
    4,669
    804
    possibly a thermal fuse

  13. qzart

    Thread Starter New Member

    Jan 16, 2015
    10
    0
    hummm didn't think about a logo. I also don't recognize it that is why I posted.
    YES it is a battery pack. I thought I had already stated that.

    I am just wondering what this chip is doing. I cant see any function of it

  14. qzart

    Thread Starter New Member

    Jan 16, 2015
    10
    0
    Now that would be awesome. I will have to test that out. and it would make sense

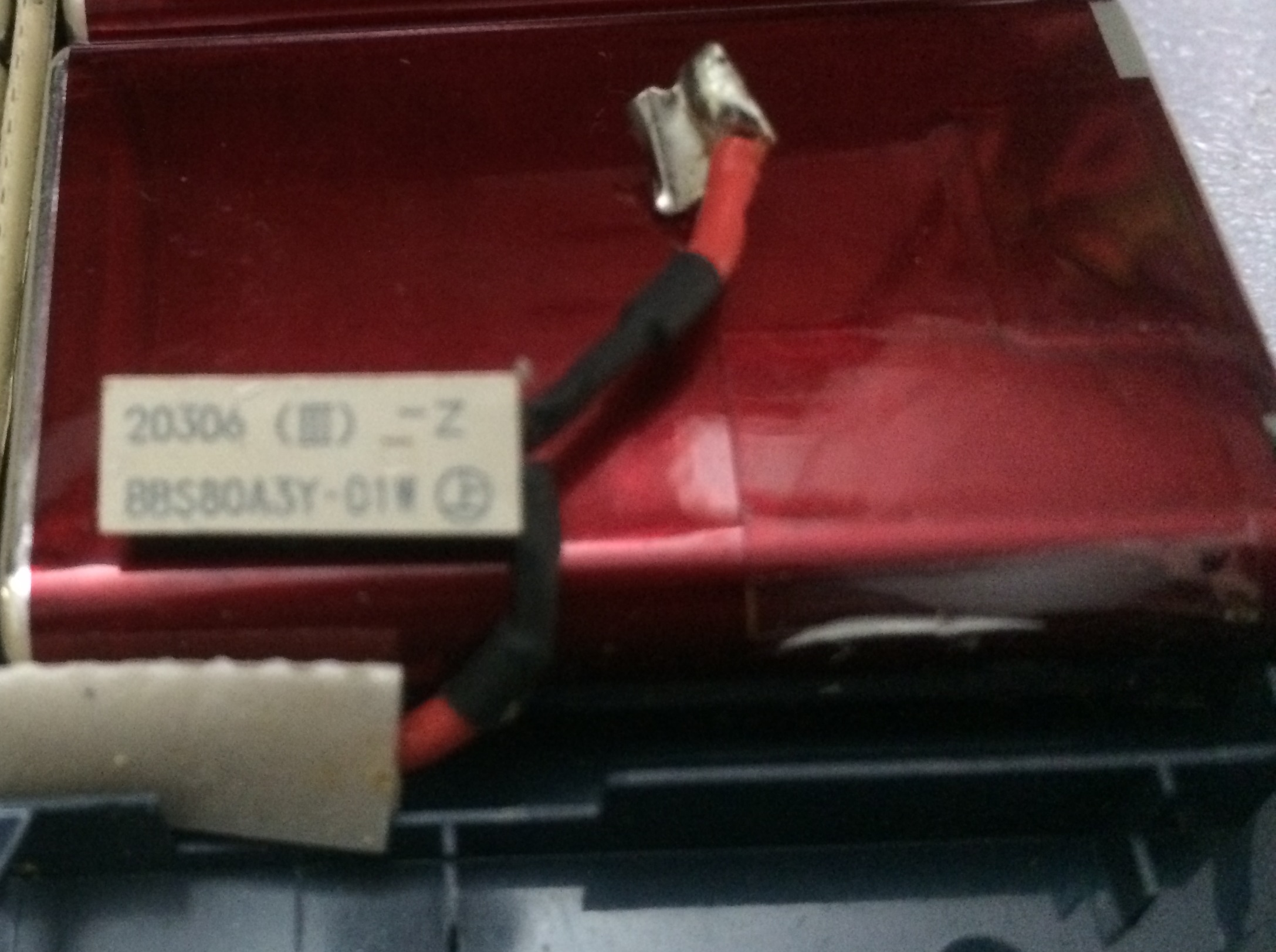

    [​IMG]

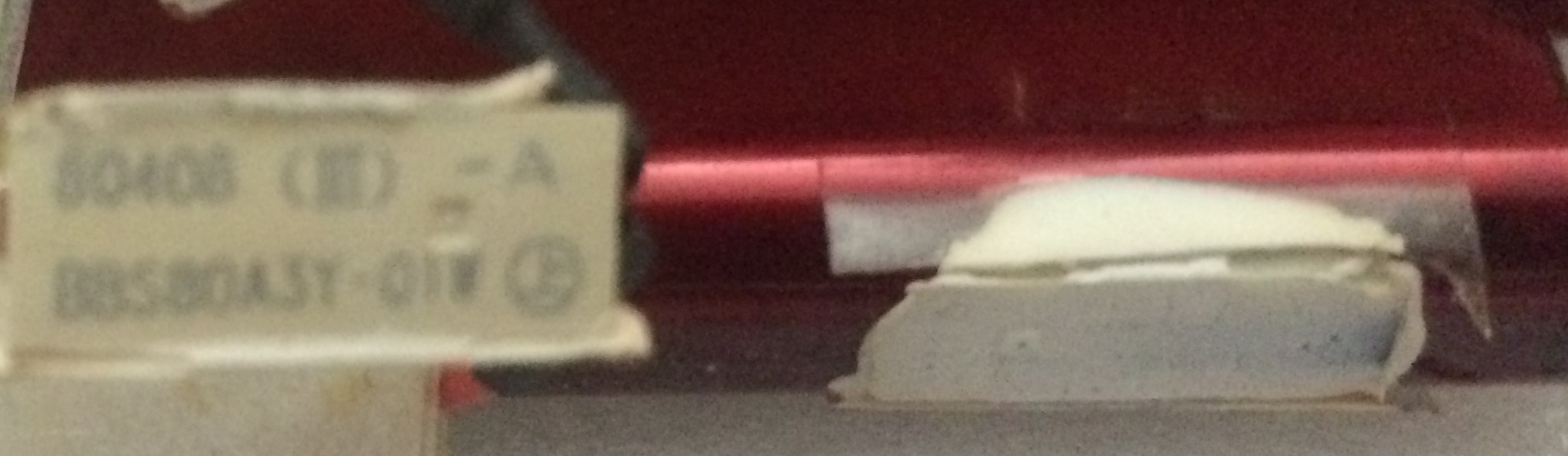

    It is attached to the battery with what looks like thermal paste.

  15. qzart

    Thread Starter New Member

    Jan 16, 2015
    10
    0
    I think you are right on the money.

    I believe that it is something similar to this http://www.atcsemitec.co.uk/item12.html
    it just does not have the monitor connector hooked up but I do see it.


    I did a bit of testing and raising the temperature defiantly causes a resistance.
