Sprint layout ground pad problem

Discussion in 'Electronics Resources' started by Synaps3, Jan 10, 2017.

  1. Synaps3

    Thread Starter Member

    Jun 5, 2013
    90
    3
    Hi,

    I am using sprint layout to make a PCB. I'm having a problem where the solder mask around the grounded pads is too large in gerber format, but looks fine in the layout itself.

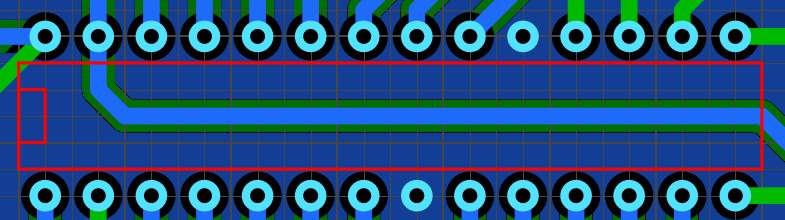

    Here is the sprint layout soldermask:
    [​IMG]

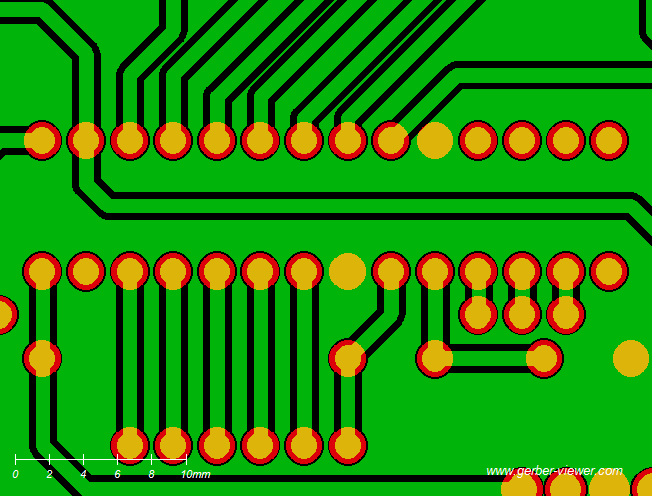

    Here is the gerber soldermask:
    [​IMG]
