Schematic for flashing police lights

Discussion in 'General Electronics Chat' started by jinrozero, Sep 3, 2013.

  1. jinrozero

    Thread Starter New Member

    Sep 3, 2013
    5
    0
    excuse me ? sorry for my english is bad ,

    i need help about police flasher replica .. !! im boring with 555 timer 4017 Decade Counter ?

    in 4017 the pulse is two tone?.. on pin 3 and 4 . how to make the pulse 10 times over normal ?? example burning pulse !!

    cant you make the circuit's thanks.

  2. jinrozero

    Thread Starter New Member

    Sep 3, 2013
    5
    0

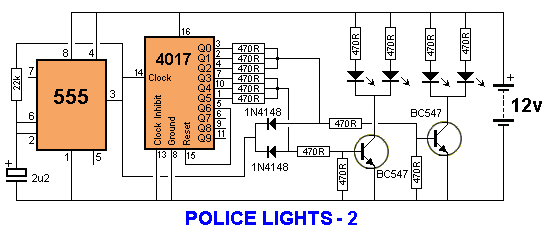

    this is classic schematic police flasher ?? but i want the new police flasher circuit with another ic's not just 555 or 4017 .the example is laser pulse?10 times or 5 timer pulse
    do you have the schematic thanks you.[​IMG]

  3. bertus

    Administrator

    Apr 5, 2008
    15,638
    2,343
    Hello,

    You just hijacked an 3 years old thread:
    need diagram for LED Police lights

    As we do not allow hijacking over her I moved them to a thread, that you can call your own.

    Bertus

  4. Wendy

    Moderator

    Mar 24, 2008
    20,764
    2,534
    Are these real police lights or for a model, such as an RC?

  5. MaxHeadRoom

    Expert

    Jul 18, 2013
    10,498
    2,364
    He did say replica? ;)
    Max.

  6. Shagas

    Active Member

    May 13, 2013
    802
    74
    Bill_M throwing out the hook let's see if op bites...

  7. Wendy

    Moderator

    Mar 24, 2008
    20,764
    2,534
    The original thread I helped the OP to design them from the ground up. I've done the same on other forums (ElectroTech). The OP mentions wanting to power lasers with them (if I read that correctly), so I have a passing interest in this thread.

  8. jinrozero

    Thread Starter New Member

    Sep 3, 2013
    5
    0
  9. blueroomelectronics

    AAC Fanatic!

    Jul 22, 2007
    1,758
    98
    Is it for your car?

  10. #12

    Expert

    Nov 30, 2010
    16,247
    6,744
    I think the word, "laser" was just a language problem. I think he means a very intense pulse of light.

  11. JoeJester

    AAC Fanatic!

    Apr 26, 2005
    3,373
    1,157
    No need to re-invent the wheel.

    There are a few different types illustrated at https://www.google.com/search?q=%2B%22police+lights%22+%2B%22schematic%22&tbm=isch&tbo=u&source=univ&sa=X&ei=wy8qUuabCsrI2gWnnYFw&ved=0CC4QsAQ&biw=1033&bih=736

    10 times faster that what? Define normal with respect to what you want, or define what you want.

    Last edited: Sep 6, 2013
  12. jinrozero

    Thread Starter New Member

    Sep 3, 2013
    5
    0
    no this for my bikes ?

    pardon . im lives in indonesia!! but my english still learn. and dont mock me if i am wrong about my language ^^ thanks

    Last edited: Sep 8, 2013
