RC circuit replacement

Discussion in 'Homework Help' started by popeyes, Feb 25, 2013.

  1. popeyes

    Thread Starter New Member

    Feb 25, 2013
    6
    0
    Given this circuit:
    [​IMG]

    Input D is 0 for only a short time then goes high and stay high. Do the RC circuit replacement from input D to output B:

    I have two results, but I am not sure which one is correct, please help me identify the correct result:

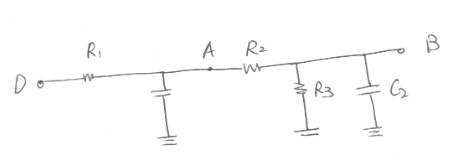

    A:
    [​IMG]

    B:
    [​IMG]

    Thanks

  2. WBahn

    Moderator

    Mar 31, 2012
    17,720
    4,788
    What is the transient RC model you are using for a MOSFET transistor?

  3. popeyes

    Thread Starter New Member

    Feb 25, 2013
    6
    0
    I am not sure which transient RC model I should using, but isn't this a just simple circuit reduction?

  4. WBahn

    Moderator

    Mar 31, 2012
    17,720
    4,788
    A circuit reduction to what? A circuit reduction by way of using an RC model for the transistors in the circuit. If you don't know what RC model you are using, then how can you do a reduction?

  5. popeyes

    Thread Starter New Member

    Feb 25, 2013
    6
    0
    I am sorry, I really dont know which RC model I should use, could you let me know how many RC model are there, I will find out which one to use, thanks
