Need suggestion on IC combination

Discussion in 'Homework Help' started by ahgang, Mar 13, 2012.

  1. ahgang

    Thread Starter New Member

    Mar 13, 2012
    7
    0
    Hi all,
    I am quite new to digital fundamental.Currently i am doing my project for this subject. It is about dual lane traffic management.

    On my breadboard now already assembly 555 time and voltage regulator, 75175 + 7408 for clocking and 74193 + 7404 for counter and this whole counter circuit already workabled. I am facing difficulties to figure out how to make below condition works.

    Requirement:
    1 . Car can enter tunnel in either direction, but only 1 car each time for each direction.
    2. Every car only will stay in tunnel for 3 clock cycle.
    3. Determine whether there is congestion in tunnel.
    4. If congestion appear for more then 3 cycle, a SEVERE_CONGESTION LED will light up for 3 clock cycles.

    My 1st thought was 74283 but it seem we need shift register to record down how many car in tunnel.
    Please help to suggest appropriate way to build this.Thanks in millions.

  2. praondevou

    AAC Fanatic!

    Jul 9, 2011
    2,936
    488
    Please post your circuit with a description of what each IC is doing.

    This will be necessary as a base for discussion.

  3. ahgang

    Thread Starter New Member

    Mar 13, 2012
    7
    0
    Ok sorry.
    Basically my voltage regulator just for purpose allow me to use 9v baterry and step down voltage to constant 5V to my circuit. And my 555 timer + 75175 is to provide single pulse clock and it connected to 74193 UP pin. 74193 output QA,QB,QC,QD connected to 4 LEDs to show counter as 0000. I will draw my full circuit and post it later on.

  4. ahgang

    Thread Starter New Member

    Mar 13, 2012
    7
    0
    Below is the basic circuit currently,all vcc and gnd connected.Sorry i do not have circuit maker program and i think this is the best way for me to draw in the office :)
    [​IMG]

    I connected Qc to CLR of 74175 due to i want to stop counting aft binary 4.

  5. ahgang

    Thread Starter New Member

    Mar 13, 2012
    7
    0
    Anyone can help?

  6. MrChips

    Moderator

    Oct 2, 2009
    12,415
    3,354
    Firstly, learn to draw a schematic properly.

    Do not use IC layouts in a schematic. A circuit diagram should look like the one used for that 555 timer circuit. Learn to use electronic symbols.

    Circuit schematics is a language. Learn the language.

    If you do not have a drawing program, draw it on paper and scan it or take a photograph.

  7. ahgang

    Thread Starter New Member

    Mar 13, 2012
    7
    0
    Sorry I was just trying to draw the layout of my breadboard but not schematics diagram. Since I was not trying to ask for troubleshooting, so I guess using the IC layout will be more easier for people to understand.
    Sorry for any inconvenience caused.Thanks anyway.

  8. MrChips

    Moderator

    Oct 2, 2009
    12,415
    3,354
    Wrong. The breadboard or IC layout is NOT easy to follow.
    That is why professionals draw proper circuit diagrams.
    Come back with a proper drawing and then someone will help you.

  9. ahgang

    Thread Starter New Member

    Mar 13, 2012
    7
    0

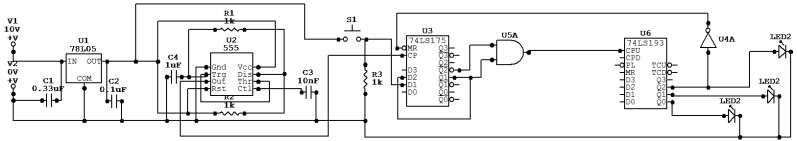

    Here it is
    [​IMG]

    The resistor value may not valid,so can ignore it.

  10. ahgang

    Thread Starter New Member

    Mar 13, 2012
    7
    0
    Nobody can help?

  11. panic mode

    Senior Member

    Oct 10, 2011
    1,318
    304
    i have problem understanding requirement. how do you create congestion with only one car, when that car does not stay longer in place than any other (all pass tunnel in same time which is 3 clock cycles).
