    Is it possible to simulate magnetically coupled circuits using Multisim?

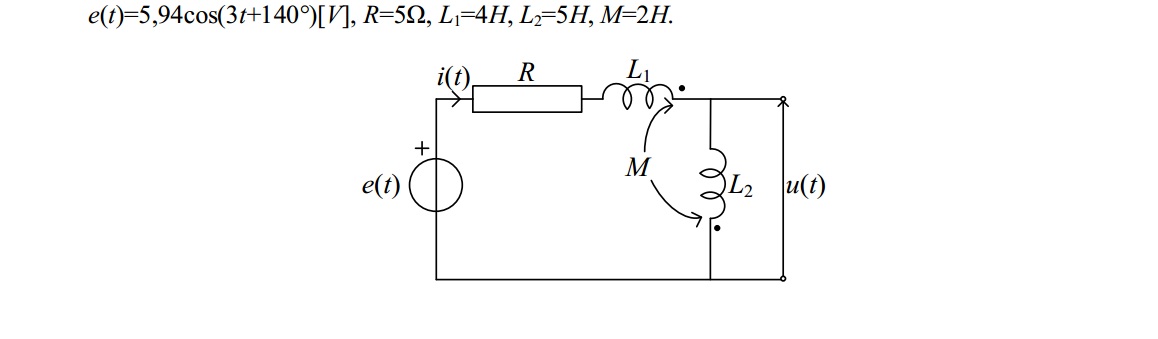

    For example, can I simulate circuit below?
    [​IMG]

  2. JoeJester

    AAC Fanatic!

    Apr 26, 2005
    3,373
    1,157
    Look for coupled coils and then place the coefficient of coupling as a constant.

  3. xxxyyyba

    Thread Starter Member

    Aug 7, 2012
    249
    2

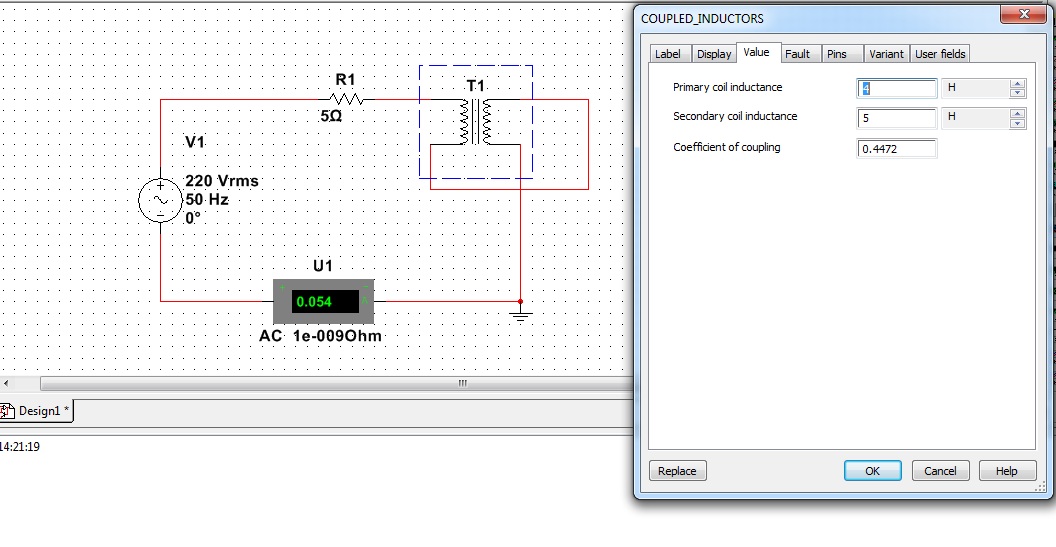

    Something like this?
    [​IMG]

    I found coefficient of coupling using formula k=M/sqrt(L1*L2).

    Last edited: Oct 20, 2012
  4. JoeJester

    AAC Fanatic!

    Apr 26, 2005
    3,373
    1,157
    What is the purpose of U1 in your circuit? I don't think ohmmeters should be placed in "series" with the voltage source.

  5. xxxyyyba

    Thread Starter Member

    Aug 7, 2012
    249
    2
    U1 is ammeter, my task is to find current in circuit using multisim, I didn't mention it at beginning...

  6. xxxyyyba

    Thread Starter Member

    Aug 7, 2012
    249
    2
    I made mistake in my first post, instead of "e(t)=5.94*cos(3*t+140)" it should be "e(t)=220*sqrt(2)*sin(314t)".

    Last edited: Oct 20, 2012
  7. JoeJester

    AAC Fanatic!

    Apr 26, 2005
    3,373
    1,157
    Did your calculations agree with the simulator's value? What about the output voltage in your diagram?

  8. xxxyyyba

    Thread Starter Member

    Aug 7, 2012
    249
    2
    Yes, they agree. I really don't know why u(t) is indicated but it doesn't matter. I also simulated few other circuits and results I got by hand matched with results I got using multisim so I think I got it... Thanks a lot for help!
