MOSFET problem

Discussion in 'Homework Help' started by tadm123, Dec 3, 2013.

  1. tadm123

    Thread Starter Member

    Nov 20, 2013
    43
    0

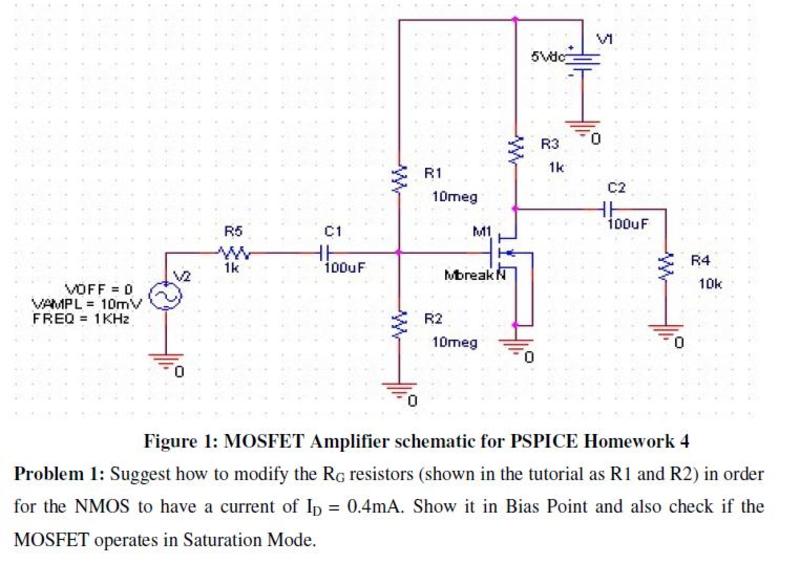

    [​IMG]
    subir fotos gratis

    The parameters of MOSFET:

    Vt=1V
    kn'=μCi=0.1[mA/V]
    λ=0.02
    L=4u
    W=20u



    Here's the formula for saturation

    [​IMG]

    I don't know where to start and I been thinking what to do for almost 1:30 hours. I tried plugging in the values into the formula and then solving for VG to get the RG values, but that doesnt' work either. What can I do to start solving this problem?
    Any help would be appreciated.

    Last edited: Dec 3, 2013
  2. tadm123

    Thread Starter Member

    Nov 20, 2013
    43
    0
    I guess my question is what's the relationship between RG and ID

  3. shteii01

    AAC Fanatic!

    Feb 19, 2010
    3,392
    497
    From my textbook, section MOSFET Small-Signal Amplifier

    "RG establishes the Q-point on the load line.

    If we assume that v_in=V_in*sin(wt), the gate-to-source voltage will have a sinusoidal signal superimposed on the dc quiescent value. As the gate-to-source voltage changes over time, the Q-point will move up and down the line.
    Moving up and down the load line translates into a sinusoidal variation in the drain current."




    So. RG sets up the Q-point. Then everything else oscillates around that point.

    Last edited: Dec 3, 2013
    tadm123 likes this.
  4. WBahn

    Moderator

    Mar 31, 2012
    17,748
    4,796
    (Q1) What's the relationship between Vg and Id?

    (Q2) What's the relationship between Rg and Vg?

    tadm123 and anhnha like this.
  5. Jony130

    AAC Fanatic!

    Feb 17, 2009
    3,957
    1,097
    In saturation we use this equation to find Id current

    \Large I_{D} = \frac{1}{2}\mu_n C_{ox} \frac{W}{L} (V_{GS} - V_{TH})^2(1 + \lambda V_{DS})

    tadm123 likes this.
  6. tadm123

    Thread Starter Member

    Nov 20, 2013
    43
    0
    Thanks a lot man. I feel pretty stupid now that it was right before me eyes. Thanks again.

  7. WBahn

    Moderator

    Mar 31, 2012
    17,748
    4,796
    No need to feel stupid. Sometimes we all need a nudge to see something that right in front of us. I've had more than my share of, "Doh!" moments and I'm sure I will have even more as my senility deepens! :p
