Looking for some PLC GRAFCET exercices to practice on !!

Discussion in 'Homework Help' started by LETITROLL, Jun 1, 2014.

  1. LETITROLL

    Thread Starter Member

    Oct 9, 2013
    218
    2
    I have an exam coming soon and i will be given some GRAFCET problems

    I will be asked to give the grafcet of a given automated process and make from it the program in ladder logic language that will be installed on the PLC .

    I don't find a very structured exercices for this type of course , i hope some one can give a link , am sure i will get better if some one takes the time to share his help .

    Thanks in advance


    This is an example :

    [​IMG]

    And here is a grafcet example :

    [​IMG]

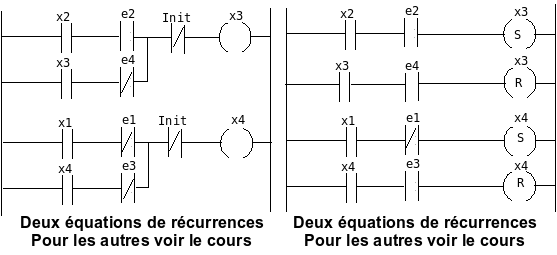

    Here is a ladder logic example :

    [​IMG]

  2. MaxHeadRoom

    Expert

    Jul 18, 2013
    10,515
    2,369
    Last edited: Jun 1, 2014
  3. LETITROLL

    Thread Starter Member

    Oct 9, 2013
    218
    2
    Interesting link , but i have already learned the basic things like linear grafcets , or , and , and other techniques .

    But what am looking for is industrial examples with variables that i can study and build a grafcet from it like the example shown earlier in the topic .

  4. MaxHeadRoom

    Expert

    Jul 18, 2013
    10,515
    2,369
    Look on AbeBooks clearing house, there is some Grafcet books in French and originating in France, may be an option.
    I don't have my old Telemecanique books any more as I have not used it since going over to Mitsubishi.
    Bonne Chance
    Max.

    Last edited: Jun 2, 2014
