Logic Diagram

Discussion in 'Homework Help' started by Healy67, Apr 10, 2014.

  1. Healy67

    Thread Starter New Member

    Apr 10, 2014
    1
    0
    Hi, was searching for information on Logic Diagrams for my college assignment and came across this forum.

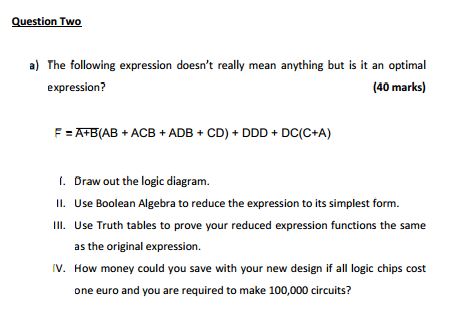

    [​IMG]

    Wondering would anybody able to talk me through doing this, I do not simply want it done for me as I have to explain how I came to the answer so just copying it down will be useless for me. If anybody could help I would be very grateful.

  2. shteii01

    AAC Fanatic!

    Feb 19, 2010
    3,387
    497
    I. Draw out the logic diagram.
    What is there to talk about?

  3. tshuck

    Well-Known Member

    Oct 18, 2012
    3,531
    675
    You know that XZ is the AND operation and X+Z is the OR operation, right?

    Knowing this, draw out the logic using gates, implementing the function shown.
