Logic circuit counter, base 16 to base 10

Discussion in 'Homework Help' started by novop, Nov 17, 2010.

  1. novop

    Thread Starter New Member

    Sep 10, 2010
    4
    0
    [​IMG]

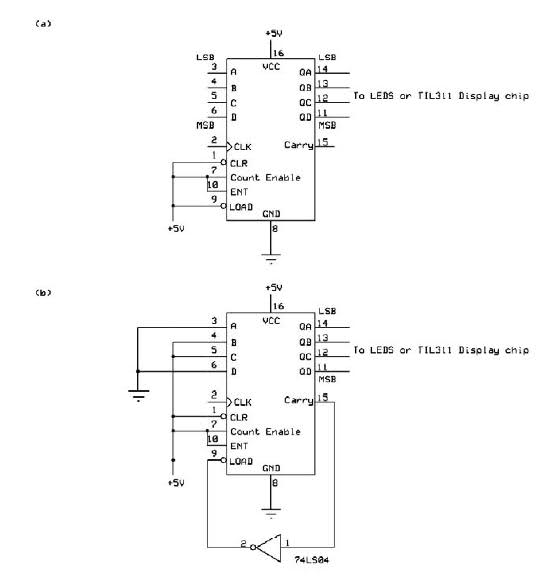

    The problem: Design a counter using this chip which counts in base 10 rather than 16. The count should reset at 10, never displaying A on the output chip.



    To be honest I'm a bit lost. I was thinking maybe I could maybe use the RESET pin on the chip, or reload it with 0 at the loading pin when the count hits a particular value. Am I on the right track? Please help this is due tomorrow ^.^

  2. thatoneguy

    AAC Fanatic!

    Feb 19, 2009
    6,357
    718
    Logisim is handy for testing ideas.

  3. novop

    Thread Starter New Member

    Sep 10, 2010
    4
    0
    I don't really have any ideas yet!

  4. beenthere

    Retired Moderator

    Apr 20, 2004
    15,815
    282
    How does 9 in hex differ from 15? Would the states of Qa - Qc be different?

    Last edited: Nov 17, 2010
  5. novop

    Thread Starter New Member

    Sep 10, 2010
    4
    0
    Sorry I'm not quite sure what "hex" is. Did you mean something like 9 is 1001 and 15 is 1111 ?

  6. thatoneguy

    AAC Fanatic!

    Feb 19, 2009
    6,357
    718
    Hexadecimal or hex is base 16.

    What are the states of the 4 bits that are not allowed for it to be base 10, or Binary Coded Decimal?

  7. shteii01

    AAC Fanatic!

    Feb 19, 2010
    3,398
    497
    Start with a truth table.

  8. Georacer

    Moderator

    Nov 25, 2009
    5,142
    1,266
    You are going to the right direction with the RESET pin. What needs to be the activation condition of the RESET pin?
