Input Capacitance of a CMOS Inverter

Discussion in 'Homework Help' started by Volt, Nov 2, 2009.

  1. Volt

    Thread Starter Member

    Nov 28, 2008
    24
    0
    Hi,

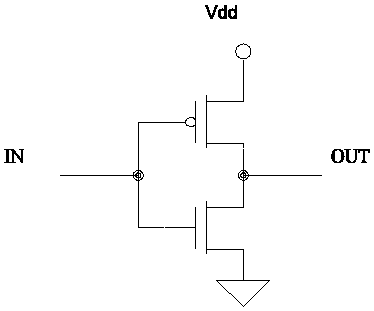

    How do I calculate the input capacitance of a CMOS inverter such as this:

    [​IMG]

    I have been given:

    *The gate area of the inverter
    *The Transconductance parameter
    *The electron mobility


    I think it is a simple formula but I am unsure and can't find it researching on the web.

    Any help would be much appreciated!

  2. MaxSmoke

    Active Member

    Oct 29, 2009
    35
    0
    Have you thought about borrowing a good book on semiconductors & electronics devices from your nearest town library or university library?

    However, there is a very good lecture series on MITOpenCourseware at least one lecture is on Micro Electronics Devices and 6.012 for 2005

    The above may be of some help.
