Identify the following objects in these circuits

Discussion in 'Homework Help' started by willtd, Jul 2, 2013.

  1. willtd

    Thread Starter New Member

    Jul 2, 2013
    3
    0

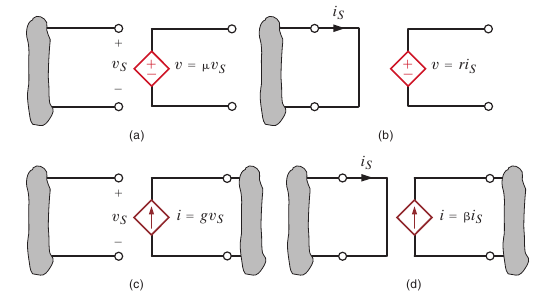

    I would like to know the name or an explanation to what the colored "grey" objects in these example circuits mean. This picture was taken directly out from a textbook that used it for references of dependent sources.

    [​IMG]

    Uploaded with ImageShack.us

  2. blueroomelectronics

    AAC Fanatic!

    Jul 22, 2007
    1,758
    98
    Belongs in the Homework section.

  3. willtd

    Thread Starter New Member

    Jul 2, 2013
    3
    0
    Sorry I'm new to this site. How do I move this thread to the homework section?

  4. bertus

    Administrator

    Apr 5, 2008
    15,648
    2,346
    Hello,

    I have moved the thread for you.

    Bertus

  5. WBahn

    Moderator

    Mar 31, 2012
    17,747
    4,796
    They merely represent the rest of the circuit that has to be there, but is unimportant to the behavior of the controlled source.

  6. willtd

    Thread Starter New Member

    Jul 2, 2013
    3
    0
    Right, but what do you call them? Is there a technical name for those grey objects?

  7. WBahn

    Moderator

    Mar 31, 2012
    17,747
    4,796
    Blobs?

    Perhaps "black box"?

    Or maybe "arbitrary circuit cloud"?

    They are not defined. The whole point of them being there is to indicate something that you don't need to know about in order to understand what IS there.

  8. jsigetich

    New Member

    Jun 21, 2013
    1
    0
    I would venture "field devices."
