help me draw these circuits

Discussion in 'Homework Help' started by Ximan, Jan 3, 2011.

  1. Ximan

    Thread Starter New Member

    Jan 3, 2011
    4
    0
    y=a'b+cd+(a'+b')(acd+b'e')

    y=ABC'D'+DE'F+AF'

    Y=A'(B+C'(D+E))

  2. Ximan

    Thread Starter New Member

    Jan 3, 2011
    4
    0
    Need the diagrams asap

  3. Wendy

    Moderator

    Mar 24, 2008
    20,764
    2,534
    It does not work that way here. You draw the circuits, and we'll help you get it right. If we draw the circuits outright what have you learned?

    I have a set of templates in my PaintCAD program so you can draw them electronically. Or you can draw them by hand and post them for critique.

  4. Ximan

    Thread Starter New Member

    Jan 3, 2011
    4
    0
    could you please draw them for me

  5. Wendy

    Moderator

    Mar 24, 2008
    20,764
    2,534
    Did you miss a class? Again, we don't do your homework, but we will help you learn. What part of drawing them are you having problem with? Boolean multiplication is an AND function, + is an OR function, and the ' is inverted.

    I will give you an example off an old illustration I made a while back.

    [​IMG]

    The formula for this problem is [​IMG] or X = A'B'D'+BC'D+AB'CD+A'B'C'

    Note the AND gate correspond to the multiplication on the Boolean equation.

    One of the ways you convert gates to other gates with equivalent functions is:

    [​IMG]

    A good refresher on the AAC book...

    http://www.allaboutcircuits.com/vol_4/chpt_7/8.html

    Last edited: Jan 3, 2011
  6. Ximan

    Thread Starter New Member

    Jan 3, 2011
    4
    0

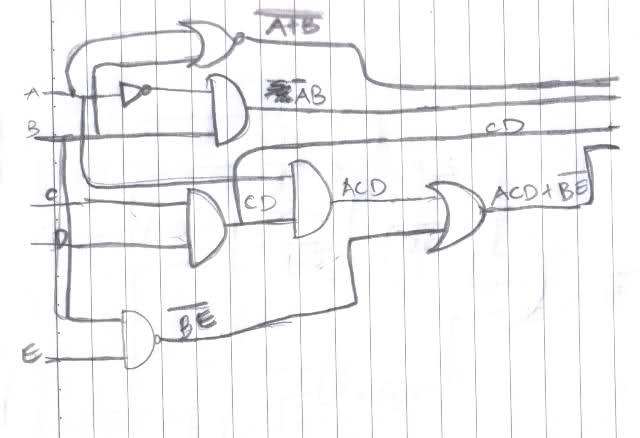

    y=a'b+cd+(a'+b')(acd+b'e')
    [​IMG]

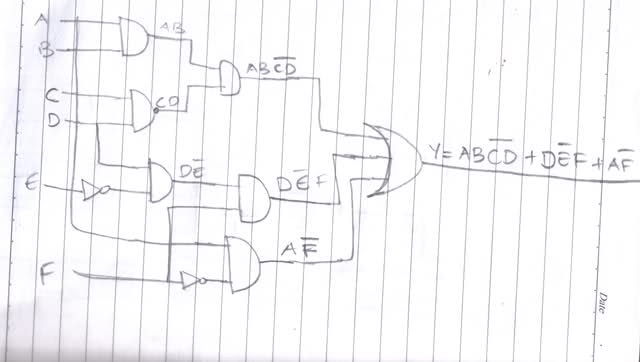

    y=ABC'D'+DE'F+AF'
    [​IMG]

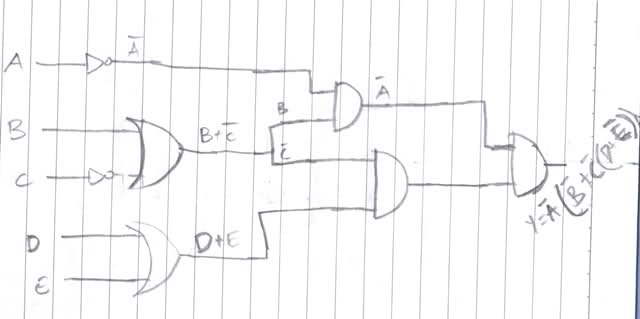

    Y=A'(B+C'(D+E))
    [​IMG]

    are these correct
    for the first please suggest a overall gate..
    if there are any mistakes please suggest and please correct them..
    thanks..

  7. Wendy

    Moderator

    Mar 24, 2008
    20,764
    2,534
    All your diagrams have several errors. You need to break the equation down into pieces like this...

    [​IMG]

    Combine the gates you see above with this...

    [​IMG]

    you should be able to simplify (and if you wish, combine) several gates.

    Gates 3 and 5 can be translated to other types of gates using the above information.

    Last edited: Jan 5, 2011
  8. Kermit2

    AAC Fanatic!

    Feb 5, 2010
    3,766
    928
    (Bill gets 100 on this test)

  9. Wendy

    Moderator

    Mar 24, 2008
    20,764
    2,534
    (bowing) Thank you, Thank you (bowing again)...

    I've only done one, and that is all I plan on doing. I have a feeling the OP missed a critical class somewhere. Having made the effort I'll try to show how it needs done in such a way he can pick it up.

    How many panicked students have we had when they found out their professors know about this site, and read their problems posted for all to see.
