Correction needed.

Discussion in 'Feedback and Suggestions' started by nanu28, Jan 8, 2009.

  1. nanu28

    Thread Starter New Member

    Jan 8, 2009
    3
    0
    The Voltage tripler under the heading-
    Volume III - Semiconductors » DIODES AND RECTIFIERS » Voltage multipliers
    needs a correction in its diagram. The total voltage is supposed top be 15 volts across nodes 0-2 where as it is stated as 10 volts.


    I really found this site very useful.
    It gave me a very good explanation for most of my problems. A better understanding for most of the topics.
    Thank You.

  2. bertus

    Administrator

    Apr 5, 2008
    15,649
    2,348
    Hello,

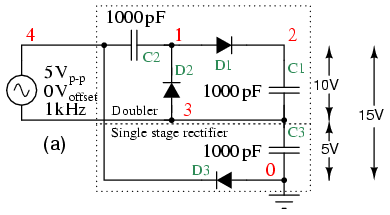

    I think you mean this figure :

    [​IMG]

    I think you are correct that the total voltage should be 15 Volts.

    Greetings,
    Bertus

  3. nanu28

    Thread Starter New Member

    Jan 8, 2009
    3
    0
    Oh yes That is the one. :)

    Well...can you suggest where should I look for Piecewise linear models?
    I want to understand the topic but I cannot seem to find it any where in the textbook.

    Thankyou.

  4. Wendy

    Moderator

    Mar 24, 2008
    20,766
    2,536
    Here is a corrected image...

    [​IMG]

  5. Dave

    Retired Moderator

    Nov 17, 2003
    6,960
    145
    Thanks for the feedback. Yes, this is indeed a mistake.

    We're glad you like the site.

    Dave

  6. Wendy

    Moderator

    Mar 24, 2008
    20,766
    2,536
    Does the revised drawing help the corrective process?

  7. Dave

    Retired Moderator

    Nov 17, 2003
    6,960
    145
    Yes thanks Bill, it should now be a simple case of replace one with another (dimensions have been maintained).

    Dave

  8. nanu28

    Thread Starter New Member

    Jan 8, 2009
    3
    0
    Oh thankyou everyone involved. :)

  9. Dave

    Retired Moderator

    Nov 17, 2003
    6,960
    145
    Thank you for giving feedback.

    As for your question regarding "Piecewise linear models", may I suggest you post up in the General Electronics Chat forum with your question where more people will get a chance to read it.

    Dave
