Cmos astable operation

Discussion in 'General Electronics Chat' started by kvsingh21, Sep 11, 2008.

  1. kvsingh21

    Thread Starter Active Member

    Apr 15, 2008
    63
    0
    I am using the following circuit to run an LED.

    Page 9 Top left diagram
    LINK

    but the problem is the output voltage on which the LED runs is very low (≈0.4V when supply voltage is 12V. How can i make this LED run brighter i.e increase the output voltage?
    Atm the values are -
    Supply 12V
    Capacitor 330nF
    Resistors 1.2KΩ each

  2. mik3

    Senior Member

    Feb 4, 2008
    4,846
    63
    Can you post your circuit as we can see if you made something wrong.

  3. kvsingh21

    Thread Starter Active Member

    Apr 15, 2008
    63
    0
    The circuit is same as the one in the link, and LED is connected to output directly at the moment.

  4. jpanhalt

    AAC Fanatic!

    Jan 18, 2008
    5,696
    904
    You of course mean upper right (Figure 2), which is sometimes referred to as the other left. :D

    How are you measuring the voltage? Your duty cycle is less than 50%. A typical voltmeter will show a voltage considerably below the peak voltage in that case. Consider: 1) Use a NE555, not the CMOS 7555 for more current output; 2) Use one of the many circuits to get >50% duty cycle. Check out the Projects sub-forum and look at post #4 of the Simple PWM thread for one example.

    Here is my favorite configuration that allows duty cycle control:
    View attachment 4416


    John

  5. Wendy

    Moderator

    Mar 24, 2008
    20,766
    2,536
    Here's one of mine...

    [​IMG]

  6. kvsingh21

    Thread Starter Active Member

    Apr 15, 2008
    63
    0
    Thanks Bill.

    Regarding your circuit how should i go about choosing values for resistors in series with LED.

  7. kvsingh21

    Thread Starter Active Member

    Apr 15, 2008
    63
    0
    Feel stupid as i cant distinguish between left and right.:(
    Thanks for yours, i will try it.

  8. Wendy

    Moderator

    Mar 24, 2008
    20,766
    2,536
    Pick a current you're comfortable with, such as 20ma, and work from there. If you're dealing with 5V you won't have much to spare, as a LED drops around 2.5V (red) to 3.5V (green) or more (white or blue). Think in terms of the CMOS or 555 shorting across one bank, leaving the other to light up.

    A CMOS 555 will be a lot closer to 50%, while there will be less perfection on a stock 555. A 7555 is generally a drop in replacement though.

  9. kvsingh21

    Thread Starter Active Member

    Apr 15, 2008
    63
    0
    Hi Bill,
    The circuit dont seem to be working. No consistant frequency output.
    I am trying to get a 1kHz square wave signal to the LED.
    These are the values i chose-
    C = 330nF
    R between pin 2 and 3 = 2kΩ
    R beween LED and ground = 400Ω
    R beween Vdd and LED = 100Ω

    i am only using one LED rather than 2. What am i doing wrong?
    Thanks

  10. Wendy

    Moderator

    Mar 24, 2008
    20,766
    2,536
    You don't mention power supply voltage. Try upping the LED resistor by a factor of 10 to see if it works. Even with very low currents it will light up, and only use a resistor that connects between the LED, power supply, and IC. Eliminate the surplus resistor (the one gong between pin 3 and the one of the power supply rails), you don't need it.

    Once you've established the circuit, then you can try increasing the current through the LED.

    If you have a DVM you might try measureing AC voltage to see if it is something like a backwards LED.

  11. kvsingh21

    Thread Starter Active Member

    Apr 15, 2008
    63
    0
    Power supply is 12V.

  12. Wendy

    Moderator

    Mar 24, 2008
    20,766
    2,536
    Then you had WAY too low resistance there. You may have fried the chip. 20ma is around 1KΩ.

  13. kvsingh21

    Thread Starter Active Member

    Apr 15, 2008
    63
    0
    Thanks for your help so far mate.

    Tried different things, and this is what i get-
    1. If i measure the output across LED, it isnt square wave.
    2. If i measure across the LED and the resistor, its a square wave.

    Now this is really confusing me.
    Is there any alternative cicuits you would suggest. For eg a BJT with 555 to drive LED etc.?

  14. AchMED

    Active Member

    Aug 5, 2008
    41
    0
    The CMOS timers can only source about 10mA and sink 100mA (Check the datasheet). Those are max ratings so you shouldn't operate at the max sink or source.

    You should either use a transistor (FET,BJT) to drive your load off the signal generated from the timer.Or configure your load so that the IC is sinking current keeping within the data sheet max power disapation etc.

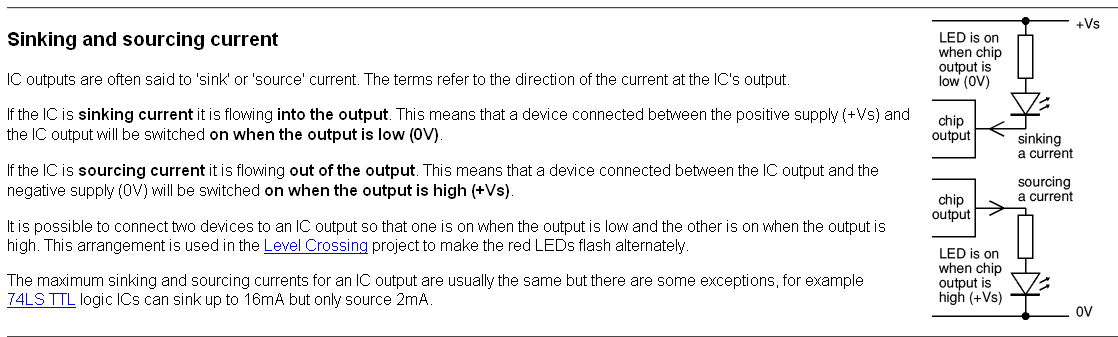

    For sink , source see the pic below.

    [​IMG]

  15. Wendy

    Moderator

    Mar 24, 2008
    20,766
    2,536
    Good advice there. I need to experiment with 7555's myself. Bought some 2 weeks ago as a matter of fact. A classic 555 will sink source 200ma on either rail, but the + side has more voltage drop since it uses 2 transistors in a darlington configuration. A CMOS device, as long as the current requirements are met, can go rail to rail (really close to either power supply voltage).

    BTW, I misspoke earlier, a 470Ω resistor would limit the current to 20ma.

  16. Audioguru

    New Member

    Dec 20, 2007
    9,411
    896
    The output of a Cmos goes rail-to-rail only when it has no load current.

  17. Wendy

    Moderator

    Mar 24, 2008
    20,766
    2,536
    I think I said that.
