Chaney C6895 Triple Power Supply

Discussion in 'The Completed Projects Collection' started by darrough, May 10, 2015.

  1. darrough

    Thread Starter Member

    Jan 18, 2015
    86
    19
    I bought this kit about a year back, when I first started experimenting with electronics. Unfortunately, I put some caps in backwards and they blew up, so I set it aside and used batteries and zener diodes. Recently I found some detailed plans for a dual power supply for a UCSB course ECE 2B taught by Bob York. I was think about building this and then I remembered the kit that I had bought previously, so I decided to salvage the kit instead. I made a few changes through. (1) The kit comes with a "pigtail" fuse. I replaced it with fuse clips. (2) I chose a power cord with a ground and attached the ground to the case of the transformer.

    I am not going to give the schematics and such, because this is a commercially available kit.

    Console.gif Interior.gif Interior2.gif Power.gif

  2. darrough

    Thread Starter Member

    Jan 18, 2015
    86
    19
    Last edited by a moderator: May 12, 2015
  3. ScottWang

    Moderator

    Aug 23, 2012
    4,848
    767

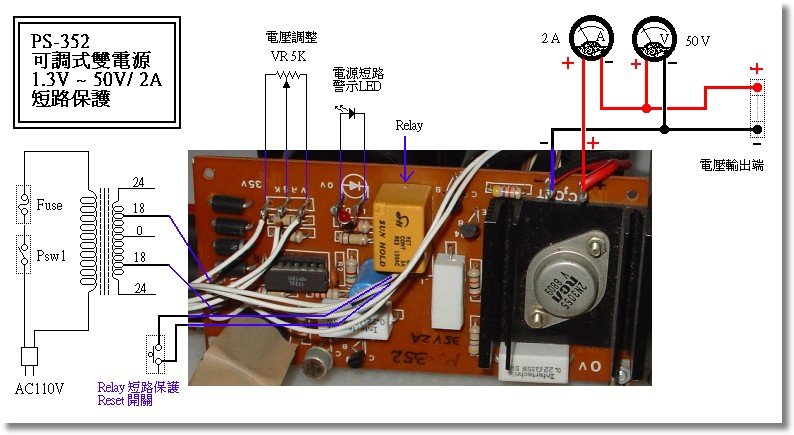

    You didn't attach the schematic, at least draw a block diagram to show how the power wiring, the following is a Power kit that I built it for a long time, because the circuit of board is not my design, so I only shown the diagram and wiring.
