baofeng radio carrier detect

Discussion in 'The Projects Forum' started by voices, Aug 17, 2014.

  1. voices

    Thread Starter New Member

    Aug 17, 2014
    2
    0
    i have a set of baofeng radios i am interfacing with echolink. i have isolation transformers on both audio channels and serial activation of the ptt on the radio but i want to be able detect when the squelch is open and send a serial signal back to the computer. i'm trying to design a circuit to activate a relay off the audio out of the radio. it works if i don't have the isolation transformer connected but when i connect the transformer it stops working. any help would be appreciated.

  2. MikeML

    AAC Fanatic!

    Oct 2, 2009
    5,450
    1,066
    Schematic?

  3. DickCappels

    Moderator

    Aug 21, 2008
    2,648
    632
  4. voices

    Thread Starter New Member

    Aug 17, 2014
    2
    0

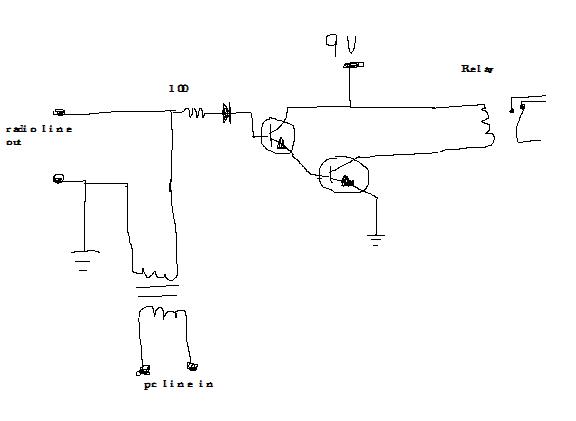

    here is a sketch i threw together, sorry for the poor quality. i did some more experimenting today. if i remove the 100 ohm resistor it will work but it also activates when signal is coming from the computer back to the radio. the relay i am using draws about 100 mA. i'm going to get another relay today that only draws 10 and see how that works.
    [​IMG][​IMG]

    [​IMG]

  5. alfacliff

    Well-Known Member

    Dec 13, 2013
    2,449
    428
    is there an led that lights up when recieving a carrier? if so, just detect light from that.
